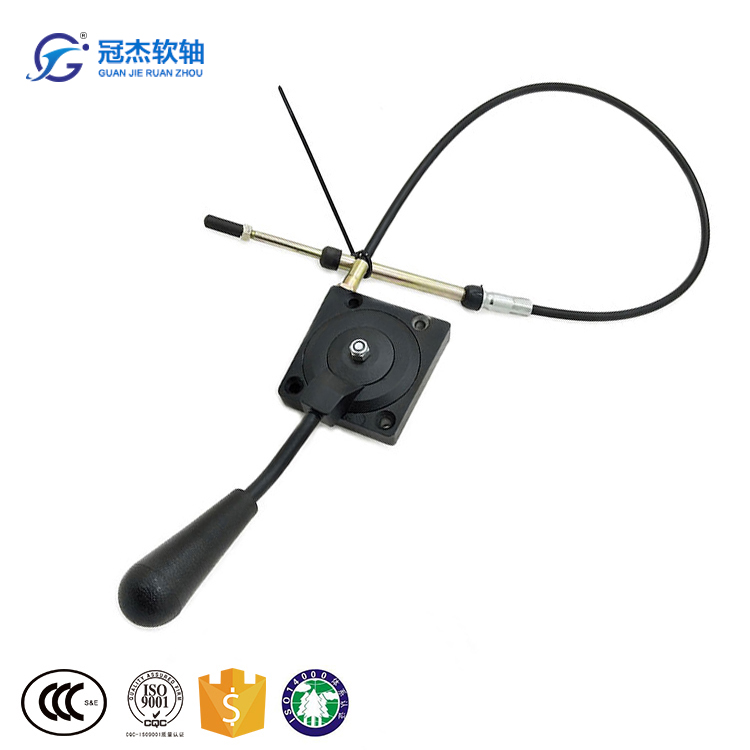

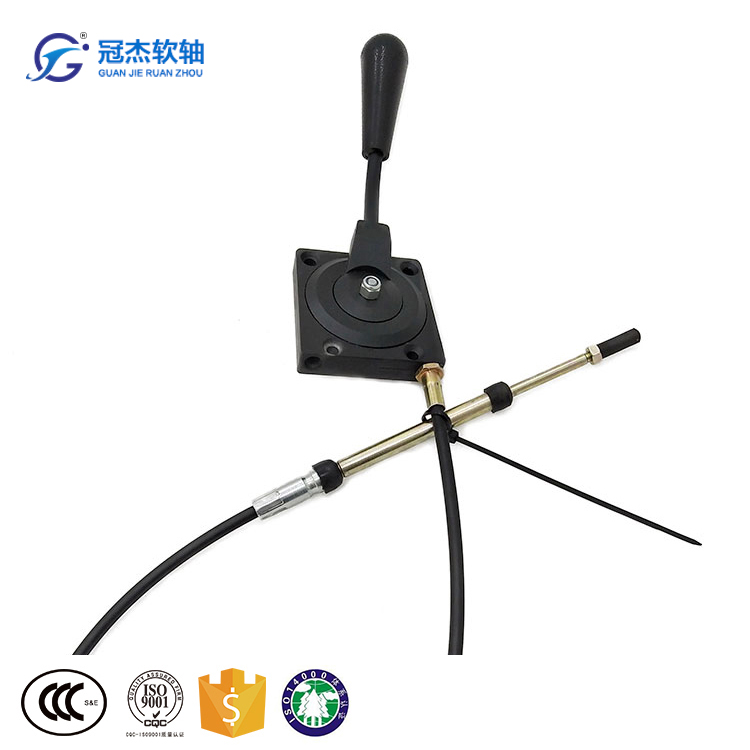

You Are Here : Home > Products > Hand Throttle Controls > GJ1103G > GJ1103G Hand throttle control lever for mini machinery
Description

Stroke

0-80mm



The diameter of mounting guy wire

6 7 8 9 10.5 mm

Thickness of gear

8mm

Fixed type

4 holes

Thickness of shell

31.5mm

Distance of holes

64mm,43mm

Inner diameter of fixed orifice

6.5mm

Common handle shank

10*190mmas client request

Structure

Rope wheel

Material of shell

Zinc alloy

Material of spline

  45 steelafter processing, quality firmer

Working principle

It can lock at any position by installing two Belleville springs between the handle and the shell which produce friction

Application

Excavator, firefighting truck, bulk cement truck

Function

 Locking at any position, control a pull cable

Advantage

 Light weight, high strength, high rigidity, proof rust, anti-deformation

Characteristic

The material of Belleville springs is 20 silicomanganese, good elasticity, long life

Install limited device to avoid moving excessively the handle, damage to the flexible shaft

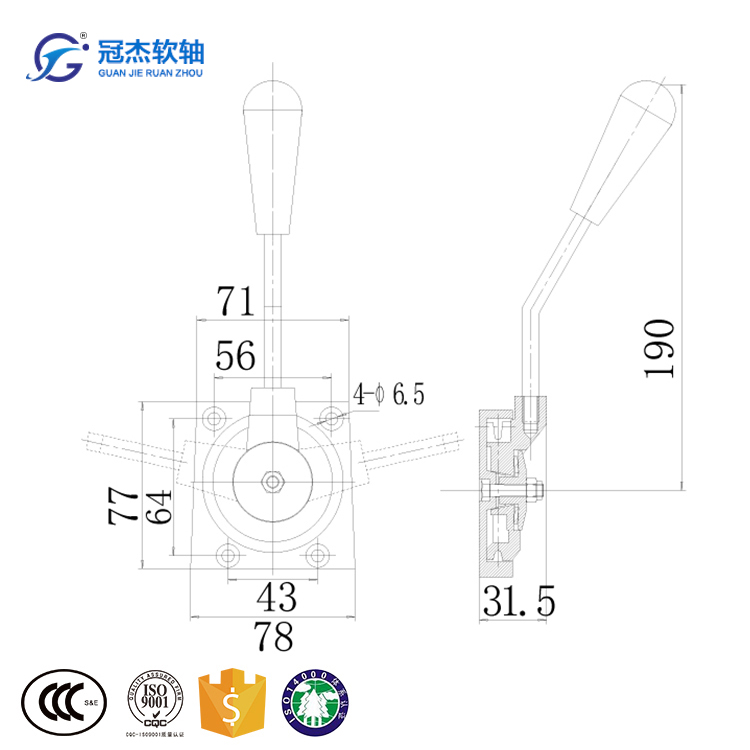

Specification
