You Are Here : Home > Products > Mechanical Control lever > GJ1107 > GJ1107 Marine pump and throttle control lever
Description

Box Specifications



Clutch

Governor(Throttle)

Stroke

Ahead

25~28,32~35,45~48(Standard)

Astern

Ahead

         53,70,96

Astern

Direction of Operation

Push or Pull

Push or Pull

Load at engine side

Max:12KG

Running :8KG

Max:30KG

Max Handle Locking Force



30KG



Additional Function

1.    Handle lever lock(governor return prevention)

2.    Stroke Adjustment Screw

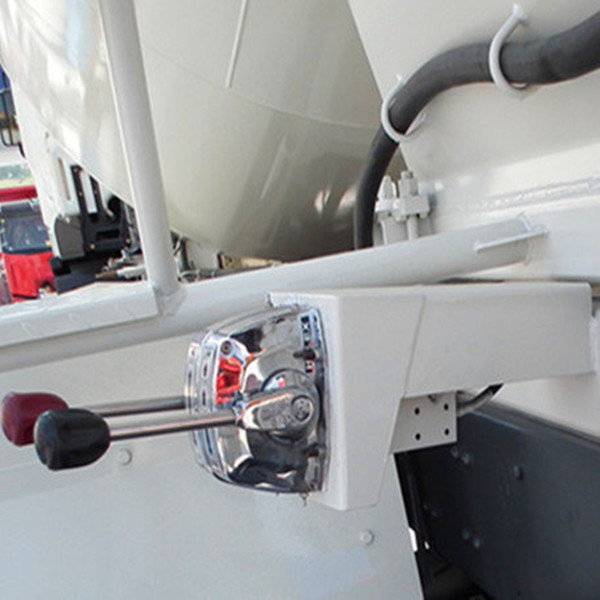

Mounting Conditions

1.    Determine the mounting position where lever operation can be easily done .Do not select the location requiring forcible and undue bend of cable

2.    If it is necessary for you to change the lever angle for mounting position reasons ,change the lever angle (which can be set at every 10 degree)

3.    As always possible, avoid the location where sea water always splash on though doing our best in waterproof and rustproof, otherwise much difference will occur in rust .
