GJ1112K handbrake is suitable for the hand brake control of high-horsepower agricultural machinery such as one-drag Foton
heavy-duty tractors, and can also be used for auxiliary clutch controllers.

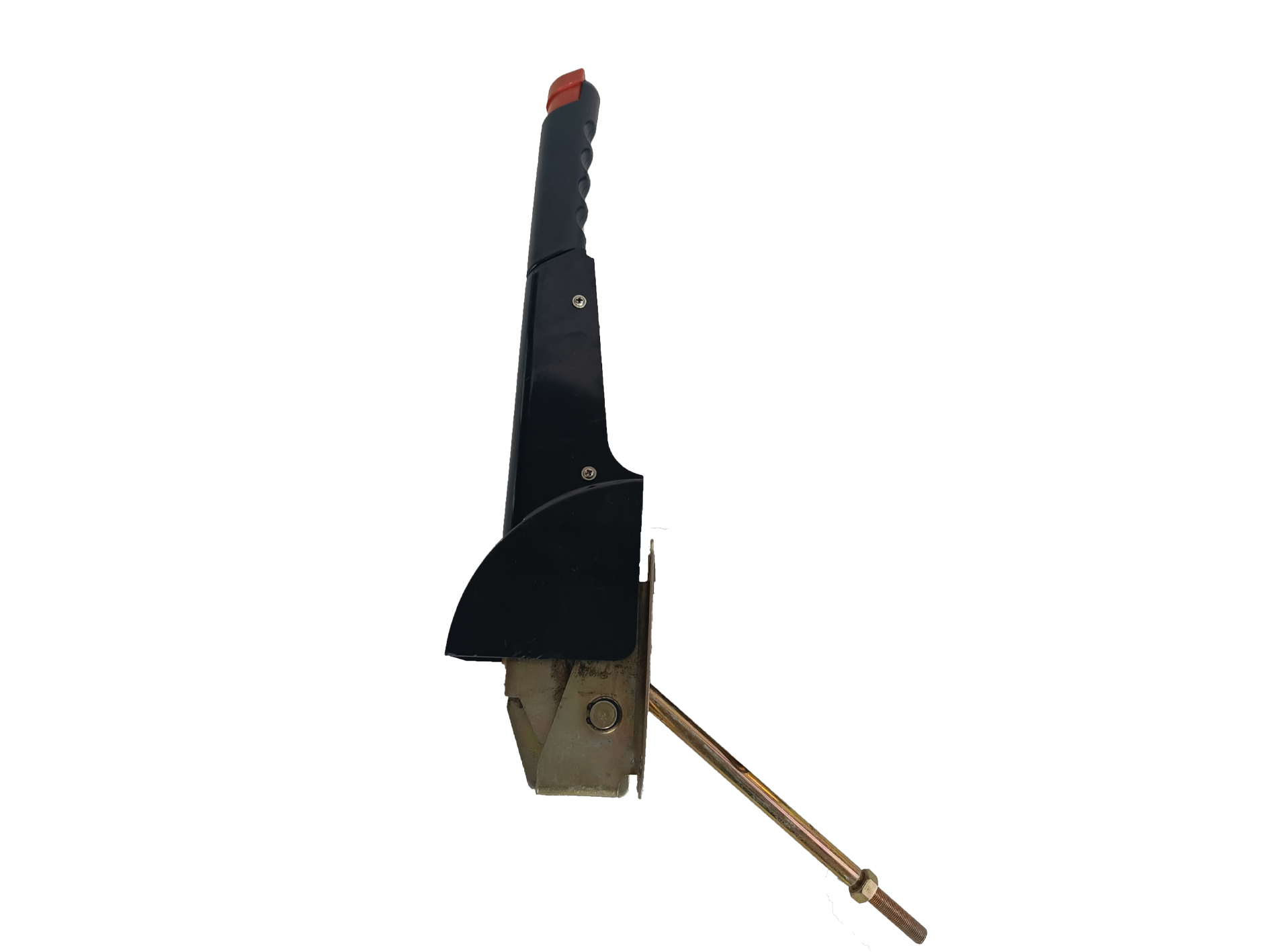

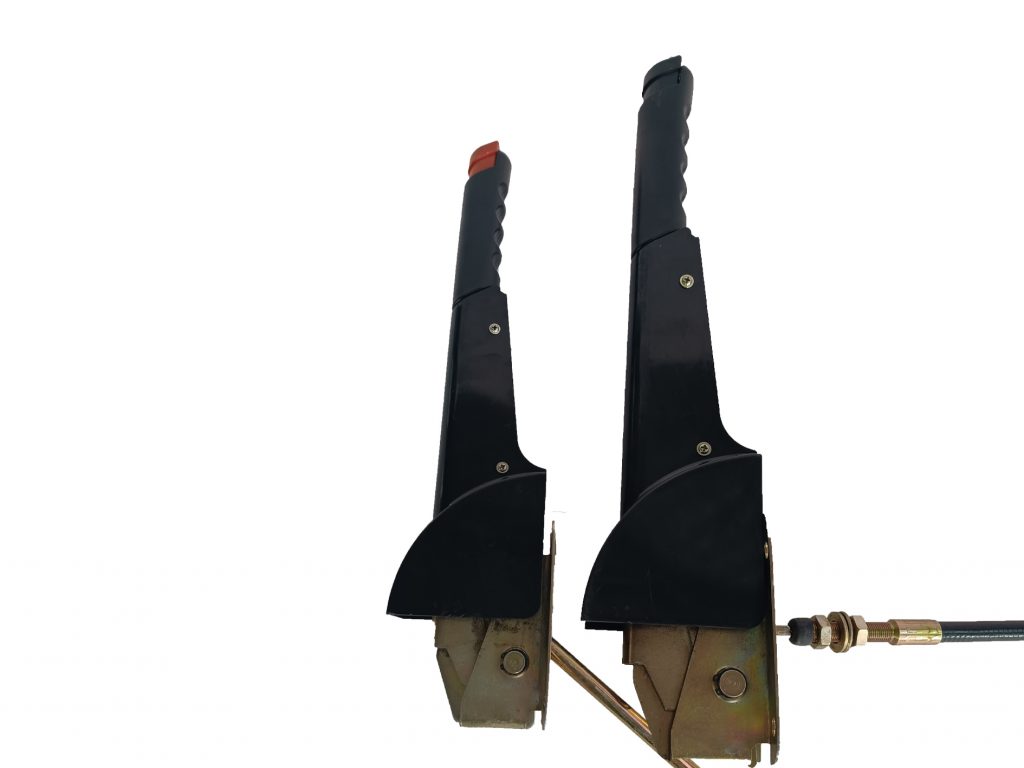

GJ1112K (105D) hand brake manipulator assembly (soft shaft connection)

Product series: hand brake flexible shaft controller

Scope of application: one forwing Futian big wheel towing large horsepower towing and other hand brakes

Installation method: 4 holes fixed

Stroke range: 0-20mm

Function: control a tension soft shaft

Product advantages: Easy to install, easy to operate, beautiful structure, long service life

Outer tube diameter: According to customer requirements

Fixed hole diameter: 8.5mm

Mounting hole distance: 67mm

Common handlebar : L465mm

Material : 45# steel
