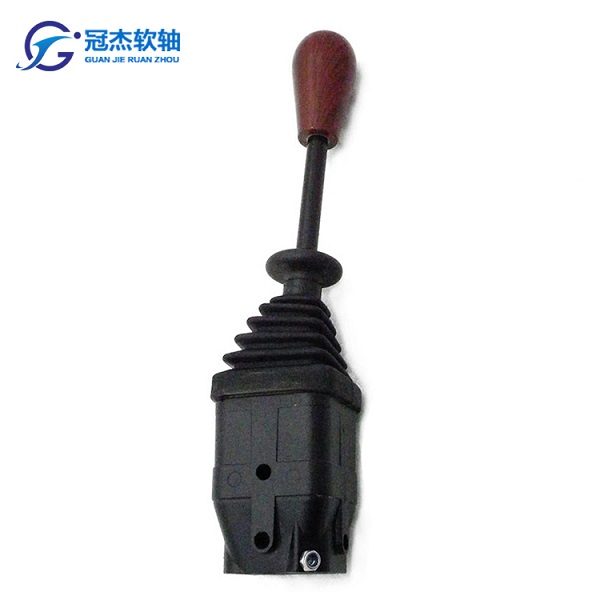

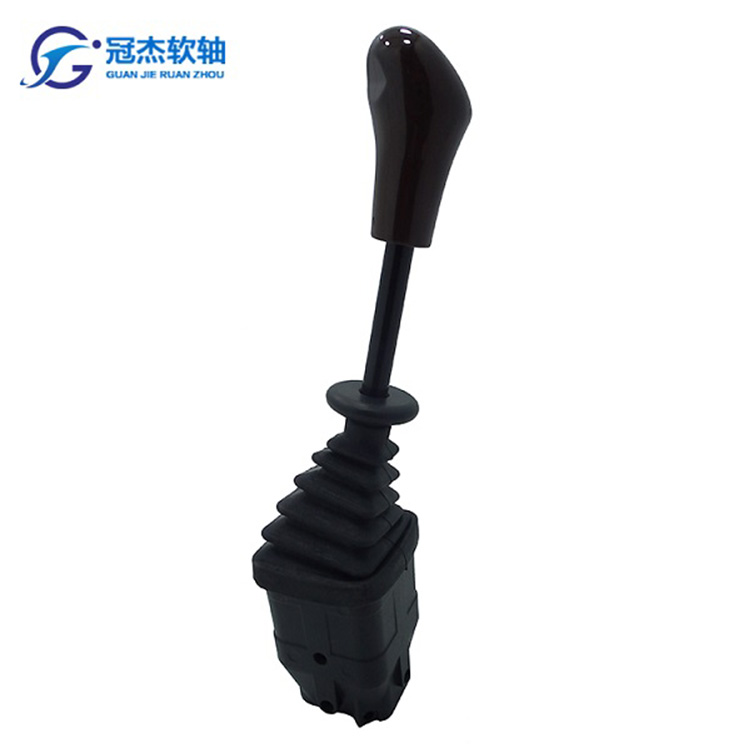

GJ1135 remote hydraulic valve control

● Main Purpose: Remote valve control

● Fixed type: 4 holes, vertical installation or horizontal installation

● Travel range: 0-35mm

● Function: control 2pcs of push pull cable, available with maximum 3 push buttons.

Description

Luoyang Guanjie

Specification

Joystick with steel articulation, designed for heavy duty applications.

Together with high efficiency cables, it can be used for any type of spool valves.

Cable stroke.: 14+14 mm

Lever ratio: 7,5:1

Cross movement

Collar safety lock

Cable type: Heavy duty, high efficency

Operating temperature: -30° ÷ +80° C

Lubrication: Wurth HHS 2000
